Drum Heater
Megadrum Heaters
Megadrum Heaters
Megadrum heaters are metal-sheathed, mica-insulated heaters made for tough industrial applications. They are used to pre-heat liquids in drums or pails to make them less viscous and more flowable. Megadrum heaters are suitable heat sources when heat is required to handle liquids during pouring, dipping, coating or mixing operations. They are made to brace a drum externally and are easily installed and removed when needed.
| SIZE | VOLT | WATT | DIAMETER | WIDTH |
| 55 gallons | 120 | 1900 | 22.5″ | 5″ |
| 55 gallons | 240 | 3000 | 22.5″ | 5″ |
| 30 gallons | 120 | 1600 | 18″ | 5″ |
| 30 gallons | 240 | 2500 | 18″ | 5″ |
| 5 gallons | 120 | 1400 | 11.5″ | 5″ |
| 5 gallons | 240 | 1400 | 11.5″ | 5″ |
| *Custom made voltage, wattage, diameter or width available | ||||
Electric Drum Heater

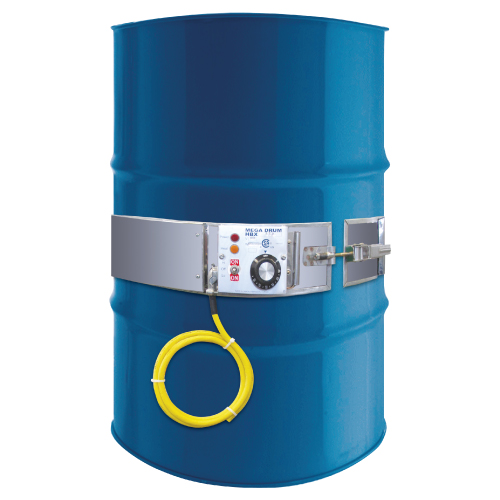

Bucan Electric Megadrums have a rugged construction and are available in two styles. The GCX model comes with spring loaded handles, a snap-action bi-metal adjustable thermostat (140°- 200°F) and a red pilot light that will indicate when the heater is energized. The HBX model has a latch and trunion fastener, an insulating jacket, a bulb and capillary adjustable thermostat (50°- 250°F or 77°- 400°F) and a control box with two pilot lights. The amber light indicates that the heater is plugged to an electrical source, while the red light indicates that the heater is energized.
- Applications
- Features
Typical Heating Applications:
- Preheating
- Reducing Viscocity
- Mixing Liquids
- Dipping or Pouring
- Temperature Control
- Freeze Protection
Contact Bucan Electric Drum Heater suppliers in Canada to buy or learn more about drum heaters.
Features of Electric Drum Heater
- Stainless steel case
- Adjustable thermostat
- Easy installation and removal
- Suitable for standard drum sizes
- 6 ft power cord and plug
- CSA certified (Canada & USA)
Contact Bucan Electric Drum Heater suppliers in Canada .
FAQs
How does a drum heater work?
The drum heater is wrapped around the drum and electricity creates heat to warm the drum.
Can I use a drum heater on a plastic (HDPE) drum without melting the container?
There is a thermostat to control the temperature so it is safe to use.
Do drum heaters require a "break-in" period or initial calibration?
The initial cycle may have a small bit of outgassing, but this will stop after the heater reaches temperature.
How do I clean a drum heater if a chemical spill occurs on the heating element?
Simply wipe the heater with any standard cleaner.
How tight should a drum belt be to ensure maximum heat transfer?
Typically spring tight is sufficient.
