Bucan channel strip heaters are reliable flat heating cells, designed to provide efficient heat to flat surfaces and in space heating applications. The thick rectangular stainless housing of these heaters provides a rugged construction suitable for industrial applications. Finned channel strip heaters have relatively larger exposed surfaces compared to regular channel heaters. This makes them highly efficient in transferring heat in both natural and forced convection space heating.
The housing of a channel strip heater is 0.375” x 1.5” stainless steel rectangular tubing. Coiled Nickel-Chrome wire is placed inside special ceramic tiles. The terminals are secured with ceramic and mica insulators to the sheath. In order to improve their heat transferring capability and to make them vibration-resistant, channel strip heaters are filled with magnesium oxide powder that is compacted through vibration. Channel strip heaters are made with or without slotted mounting tabs.

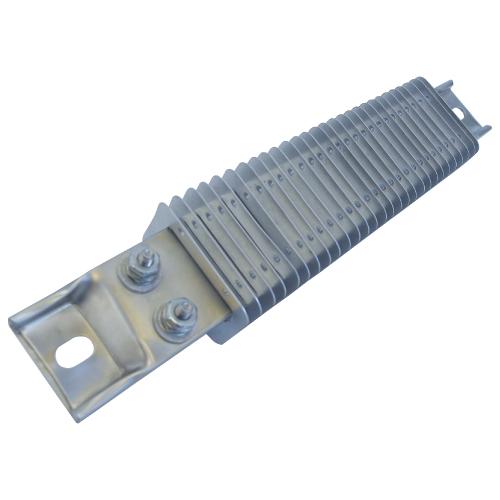

Finned channel strip heaters utilize 2” x 1.375” Aluminized steel fins (Stainless steel optional) that are designed in such a way that they grip the channel heater housing and dissipate heat efficiently.
- Applications
- Specifications
- Terminations
- Tips
- Standard Products
Typical Heating Applications:
- Hot Plates
- Space Heating
- Ovens
- Molds
- Pre-Heaters
- Sealing Bars
- Load Bank Resistors
Channel Strip Heaters
- Max Sheath Temp: 1200°F
- Standard Voltage: 120 or 240 Volts(other voltages are available; consult the factory)
- Max Amps: 20 A
- Watt Density (nominal): 20 w/in2
- Wattage Tolerance: +5%, -10%
Finned Channel Strip Heaters
- Max Sheath Temp: 1200°F
- Standard Voltage: 120 or 240 Volts (other voltages are available; consult the factory)
- Max Amps: 20 A
- Watt Density in still air
- Up to 250°F: 20 w/in2
- 250°F – 500°F: 15 w/in2
- 500°F – 750°F: 10 w/in2
- Watt Density 10ft/sec moving air
- Up to 200°F: 38 w/in2
- 200°F – 350°F: 30 w/in2
- 350°F – 500°F: 20 w/in2
(for other air velocity/temp. combinations consult the factory)
- Wattage Tolerance: +5%, -10%
Channel Strip Heaters and Finned Channel Strip Heaters

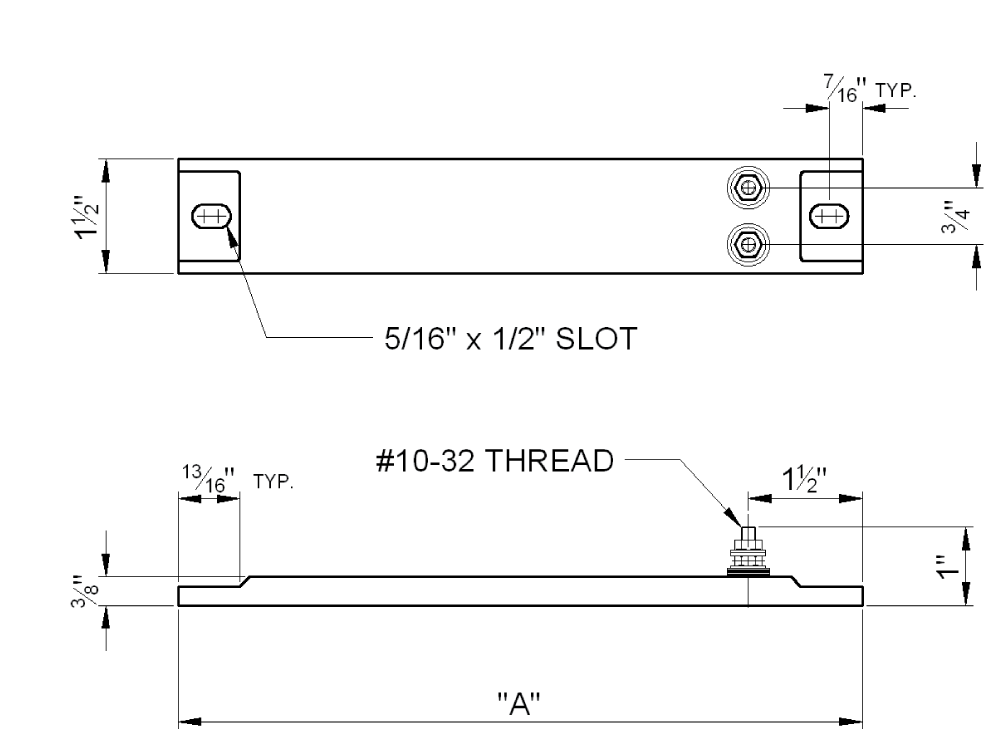

BA style with mounting tabs

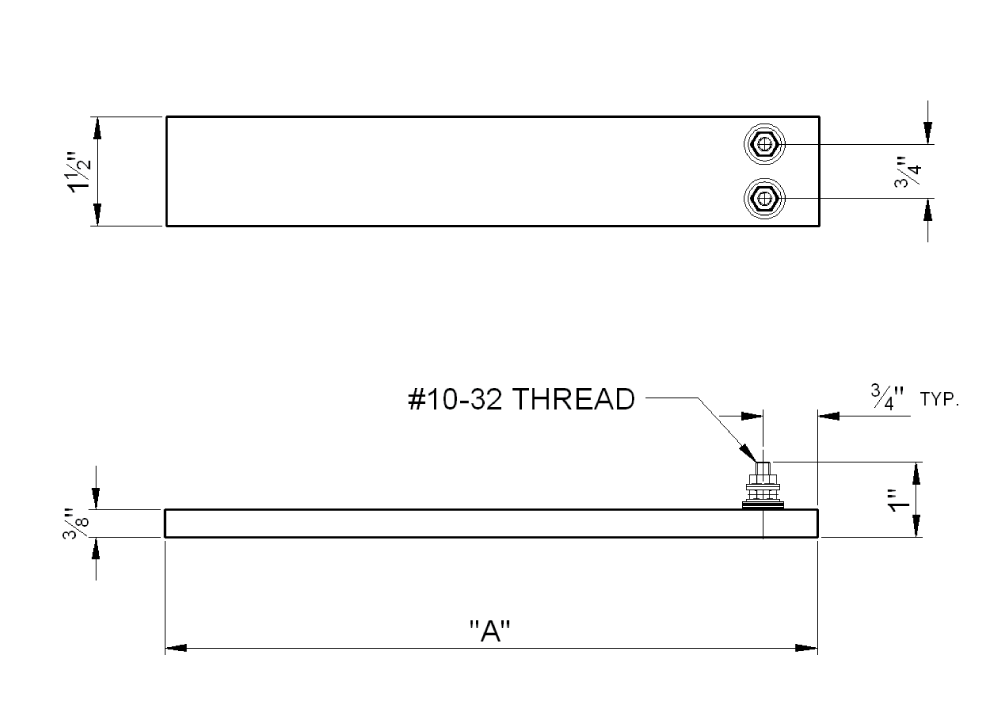

BA style without mounting tabs

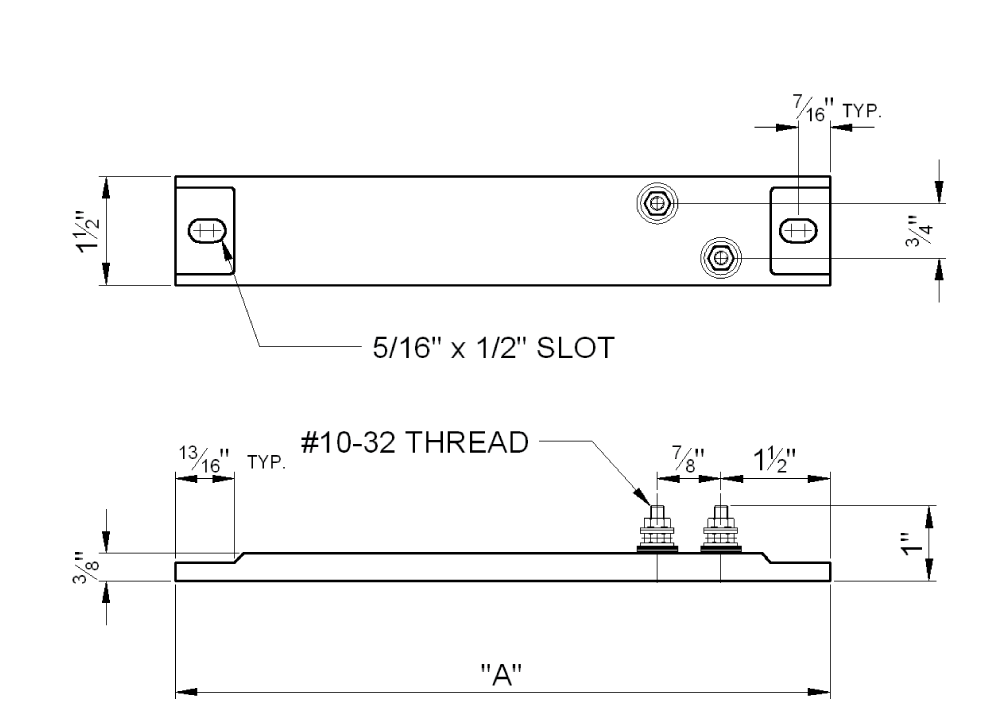

BC style with mounting tabs
BC style with mounting tabs

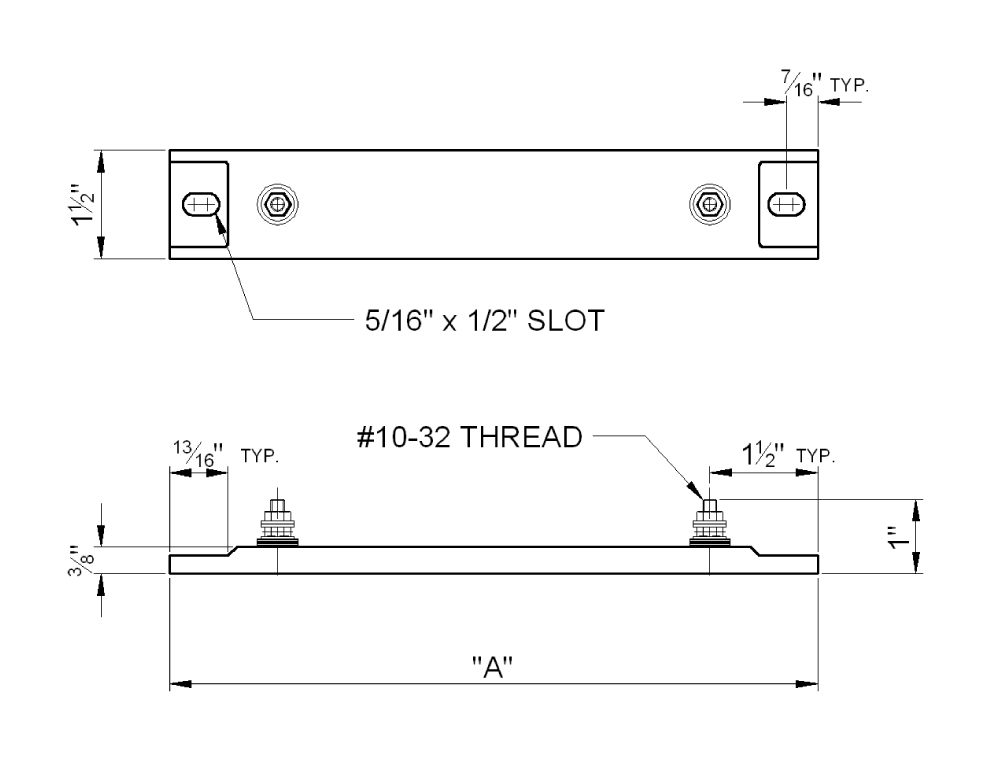

BD style with mounting tabs

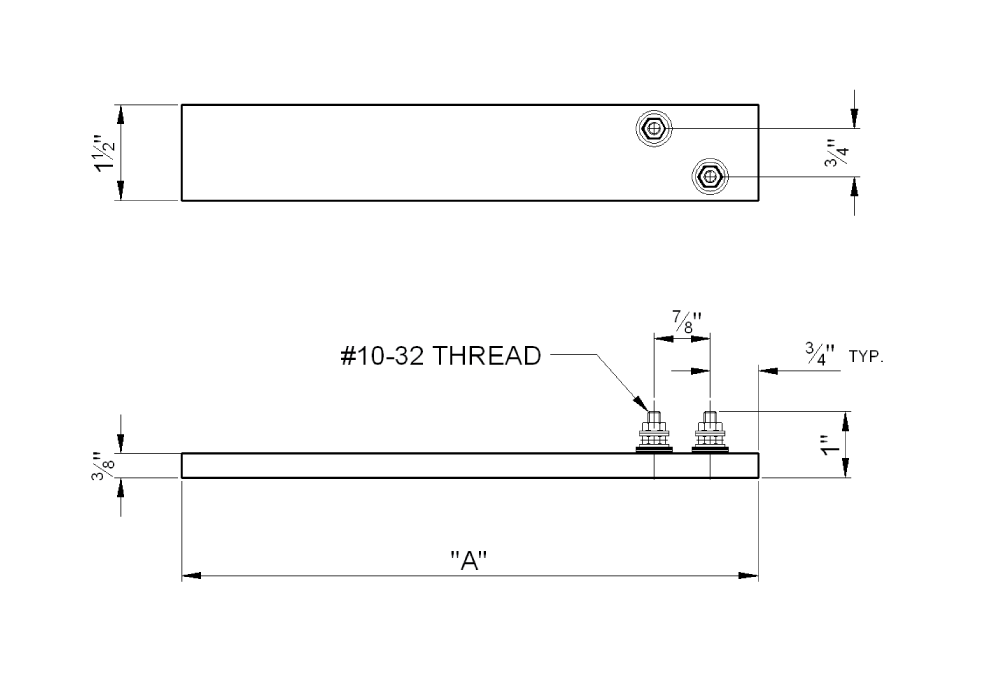

BD style without mounting tabs

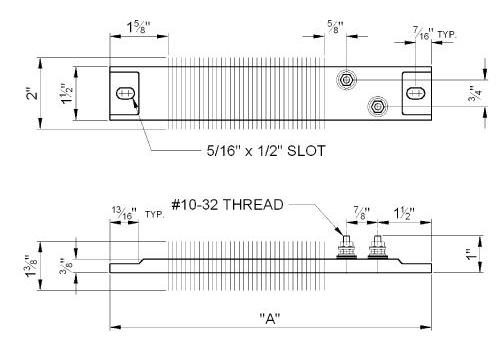

FBA Style

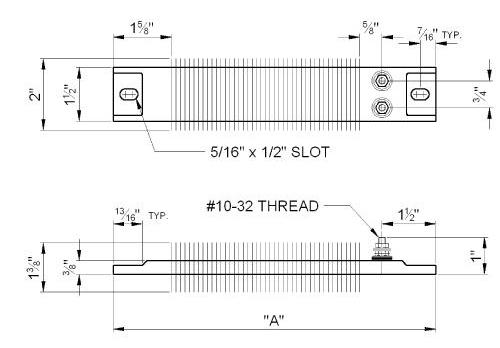

FBC Style
FBD Style
Installation Tips
- It is critical to have a good surface-to-surface contact between channel strip heaters and mounting surfaces. These surfaces should be clean, flat and smooth.
- Channel strip heaters expand when energized and thus tend to get detached from the surfaces they are mounted on. To prevent this, it is essential to allow room for expansion by tightening firmly the mounting screw on one end (usually the terminal side) and leaving the other side slightly loose. When relatively long strip heaters are used, it is good practice to use clamps to hold strip heaters firmly attached to application surfaces.
- While tightening post terminals (30 in – lbs), a backup wrench should be used to hold the counter-nut to ensure tightness and prevent terminals from damage.
- When a finned channel strip heater is placed in an air stream, the air flow should be perpendicular to the length of the heater and parallel to its width (1.5″ side).
- Channel strip heaters (with or without fins) that operate at a potential difference of more than 300V between their line voltage and the ground, should be isolated from the surface of an application by secondary isolating ceramic bushings. Bucan offers insulators that are adequate for Ø 1/4″ screws.
To be able to use these ceramic insulators, strip heaters should have 1/2″ x 5/8″ mounting slots (factory pre-punched upon request).
BA style with mounting tabs
BD STYLE WITH MOUNTING TABS
FBA STYLE
For specifications, please check product catalogue
Download PDFFAQs
What industries commonly use channel strip heaters?
They can be used in many industries, but heating platens is common.
Can channel strip heaters be installed on angled or curved surfaces?
They can be if they are installed perpendicular to the curve.
How fast can a channel strip heater warm up a surface?
This is dependent on the power, mass and overall temperature.
Can I use a channel strip heater on a non-metallic surface?
You can, but the melting point of the other material is crucial for success.
How do I minimize heat loss when using a channel strip heater?
Adding insulation over the strip heater can assist with thermal Loss.
