Ceramic heaters are medium-to-high temperature heaters that can deliver up to 1200°F. The nickel-chrome heating cores of these durable heaters are placed inside interlocking ceramic tiles that are assembled like a brick wall. A ceramic fiber insulating mat and a stainless-steel jacket cover this assembly. This construction makes ceramic band heaters flexible and highly energy efficient.

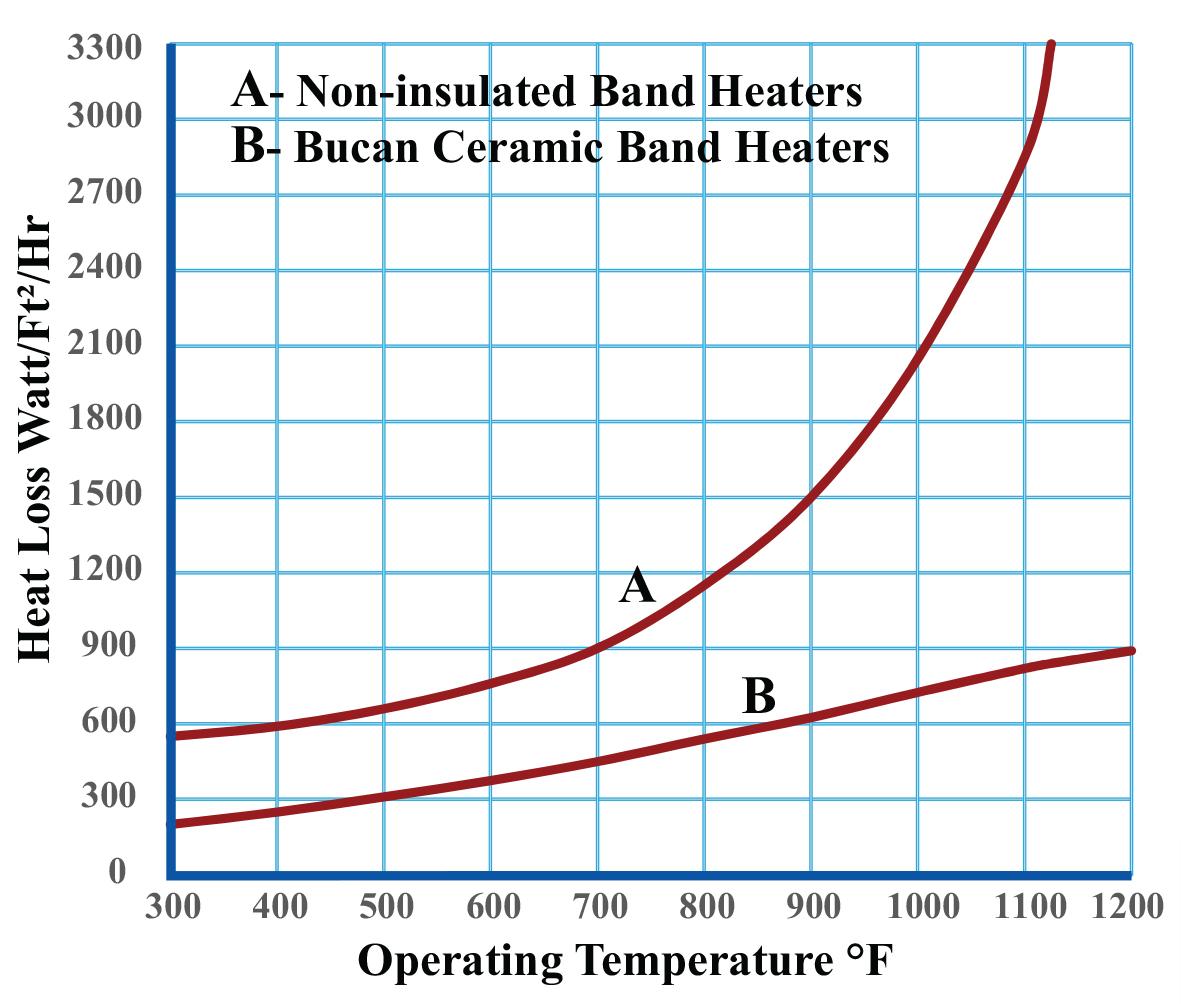

An energized ceramic heater that operates at 1200°F internally will attain around 400°F on its outside shell. Ceramic band heaters consume 20% less energy than band heaters that are not insulated. Efficiency can be improved even further by increasing the thickness of the ceramic fiber insulating mat.
| Max Temperature | 1200°F |
| Max Voltage | 600V |
| Maximum watt density | 45 w/in² |
| Wattage Tolerance | +5%, -10% |
| Minimum diameter | 2″ |
| Minimum width | 1″ |
| Thickness with 1/4″ insulation | 5/8″ |
| Standard gap | 3/8″ |
| Sheath Material | Stainless Steel 430 |
Advantage of Ceramic Band heaters
An additional advantage of Ceramic heater is that they transfer heat through conduction and radiation. This makes their tightness on barrels less critical; thus, they are less prone to thermal expansion problems. It should be noted that over-tightening a ceramic band heater increases the pressure on the ceramic fiber mat, which reduces its insulating efficiency. Therefore it should be avoided. Theoretically, there are no restrictions on the diameter that ceramic band heaters can attain; however, because these heaters utilize ceramic band tiles that are available only in specific lengths, the width of these heaters falls within a certain incremental range of sizes.
Bucan Ceramic band heater are available with different clamping mechanisms, termination styles, holes, and cut-outs.
It should be noted that over-tightening a ceramic band heater increases the pressure on the ceramic fiber mat, which reduces its insulating efficiency. Therefore it should be avoided. Theoretically, there are no restrictions on the diameter that ceramic heater can attain; however, because these heaters utilize ceramic tiles that are available only in specific lengths, the width of these heaters falls within a certain incremental range of sizes. Ceramic band heater is available with different clamping mechanisms, termination styles, holes, and cut-outs.
- Applications
- Terminations
- Constructions
- Clamping
- Tips
Typical heating applications of Industrial Ceramic Band Heater
- Injection Molding Machines
- Plastic Extruders
- Blow-Molding Machines
- Heating Die-Heads
- Wire Processing Machines
- Research & Development
- Autoclaves
- Heat Treating
Contact us now to learn more about industrial ceramic heaters in Canada or Call – 1-855-686-4113
G Style - Terminal box:
A practical way to protect screw terminals from damage and exposure.

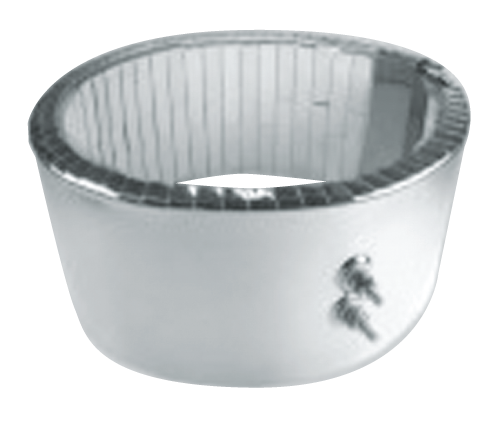

B Style - Post terminals:
The most commonly used termination style. Recommended for high amperage applications

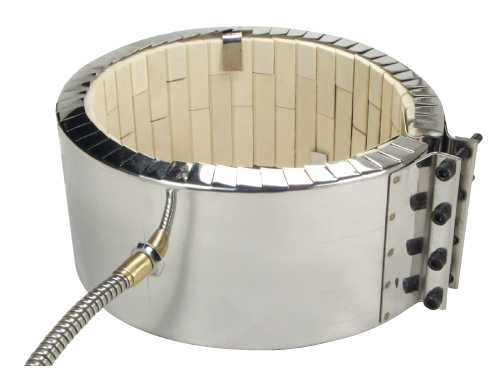

H Style - Straight armor cable:
Provides protection against abrasion and contamination

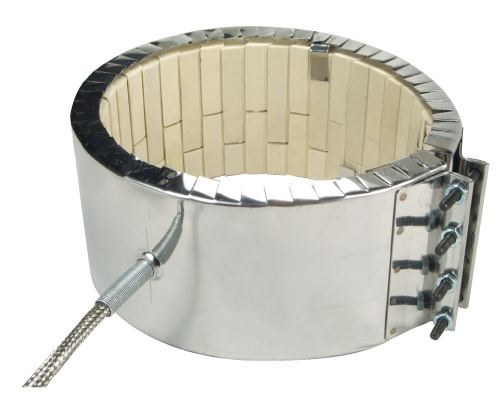

E Style - Stainless steel braid:
Highly flexible. Protects the lead wire from abrasion

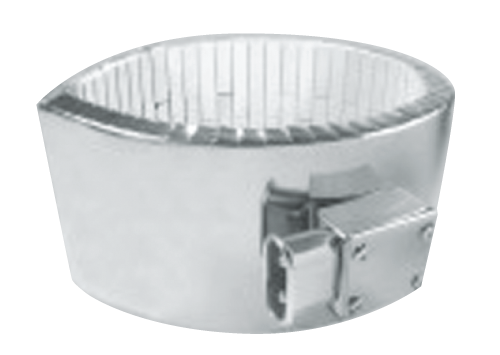

K90 Style - European connector:
Used when there is not enough clearance above a heater to use the K00 style European connector.

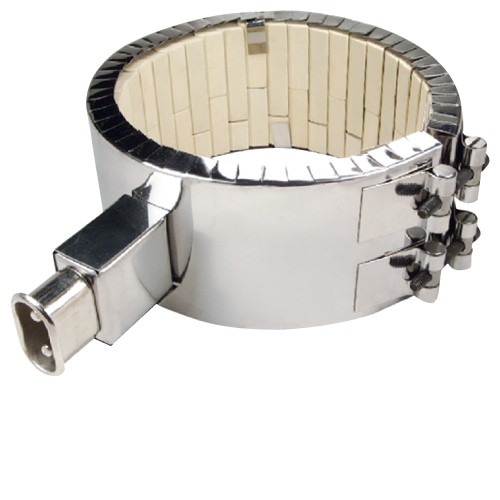

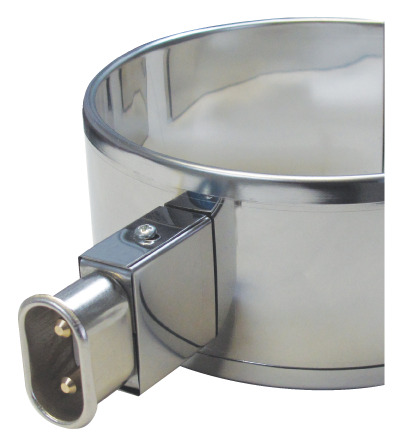

K00 Style - European connector:
Ideal termination style when the power leads are frequently removed from the heater.
Special Construction

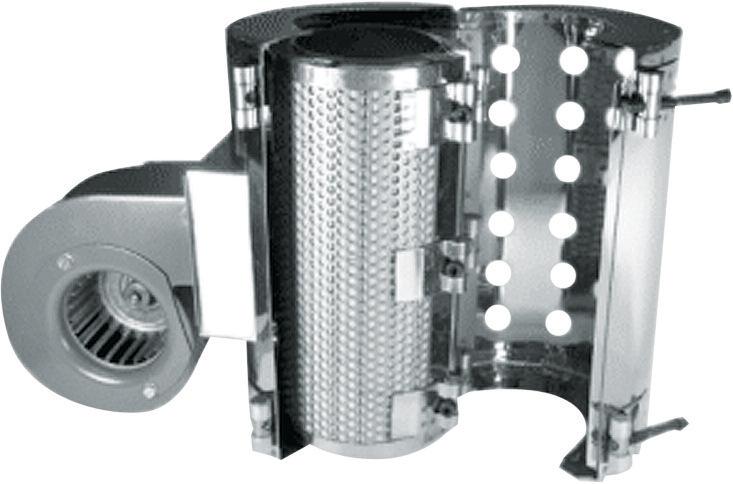

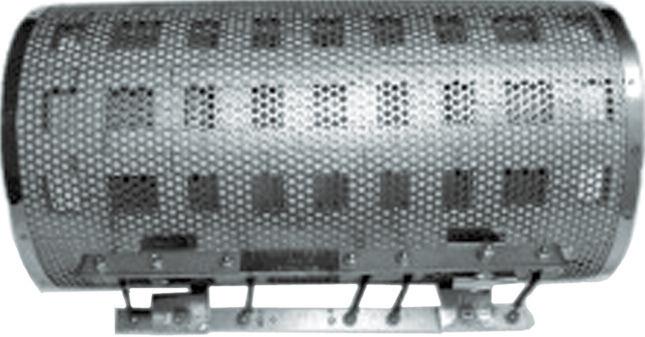

Ceramic band heaters can be combined with high-velocity fans to form fast responding heat/cool units in accurate heating applications. These heaters are made with a perforated outside stainless steel sheath, and with no insulating jacket.
Flange lock-up
The most economical clamping style for ceramic heaters, with #10-32 nuts and screws.

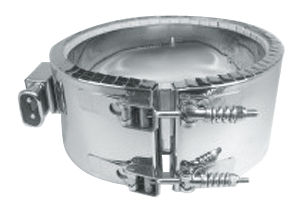

Latch & trunion:
Available on heaters that are 10” or bigger in diameter. This clamping style provides ease of installation and removal.

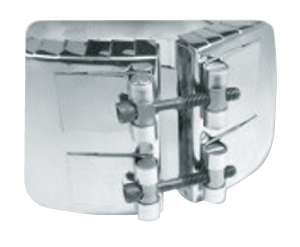

Barrel nuts:
Barrel nut fasteners with 1/4-20 socket head screws are standard on all ceramic heaters. This style can accommodate springs which compensate for thermal expansion.
- Because ceramic heaters are highly flexible, it is not necessary to make them in two-piece construction to facilitate installation.
- Since wide ceramic heaters are as efficient as narrow ones, it is preferable to opt for wider heaters instead of several narrow ones to eliminate the cold section in-between heaters.
- To minimize on-off cycling and temperature overshoots, it is recommended to make the wattage of ceramic heaters as close as possible to the wattage required in the application.
- Ceramic band heaters are highly vulnerable when exposed to contamination. They should never be used in a hazardous environment or get exposed to moisture or oil.
- The current amperage limitation for lead wire exiting directly from a heater is 10 amps.
- For Higher than 10 amp applications, lead wires should be combined with a terminal box.
- European plugs are adequate for 16 amps.
- To have a balanced internal winding, it is recommended to locate the terminals at 180° with respect to the gap.
- Ceramic band covers could be added to provide safety to exposed terminals.
